Tech Specs

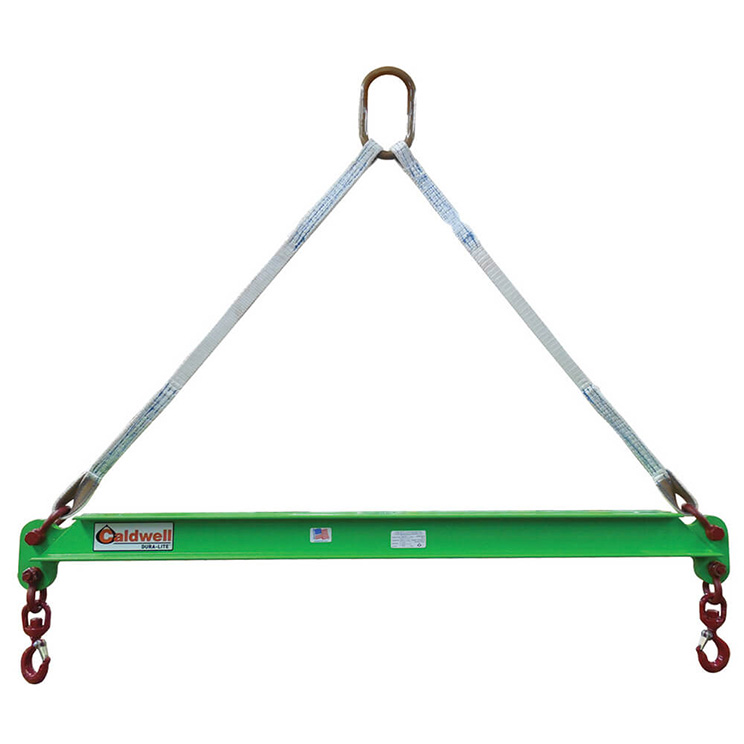

3 Ton x 6 feet Caldwell Dura-Lite Spreader Beam
Caldwell Dura-Lite™ equipment offers many advantages to a wide variety of applications and industries
• Composite material is not detected by radar, ideal for military applications.
• Lightweight composite beams do not reduce crane capacity as much as the steel equivalent.
• Beams 8' and under can be shipped via small package service saving time and money.
• Non-conductive materials are ideal for use in the utility industry.
• Marine applications and other harsh environments are no match for the non-corrosive properties of our composite beams.
• Dura-Lite™ beams are the lightweight, ergonomic solution needed to help reduce work related injuries.
• Service class 4 means that these lifters are designed for 2 million load cycles - that's over 30 years at 200 lifts per day!
Capacity: 3 Ton
Max. Spread: 6 feet
Headroom: 54 inches
Bottom Shackle: 3-1/4 Tons

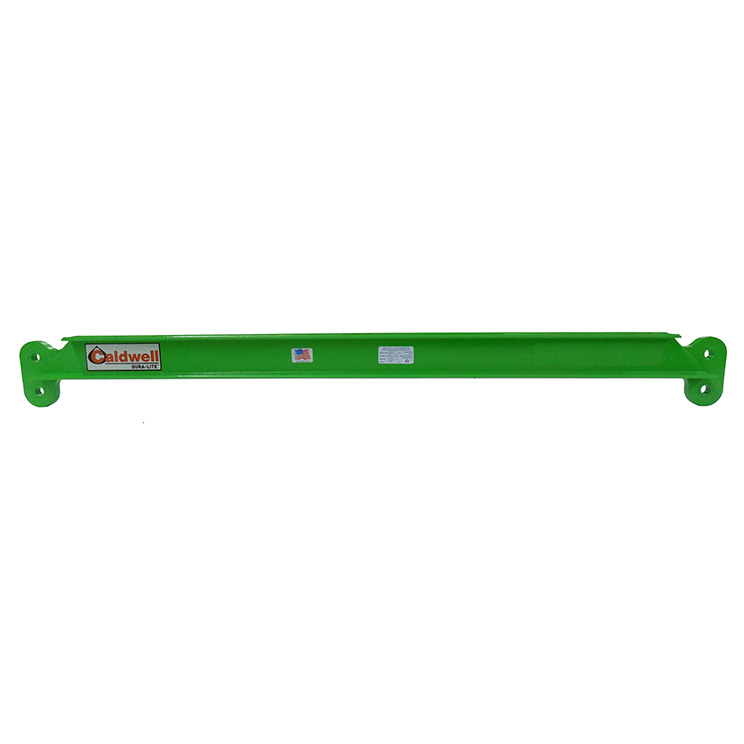

Beam only Weight : 49 lbs.
FEATURES
- Lightweight
- Non-corrosive
- Non-conductive
- Can be used for a wide range of applications
- Standard capacities range from 1/4 to 3 tons
- Custom designed Dura-Lite equipment available
- Incredibly strong and impact resistant
- Supplied with lower shackles and hooks.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 4.
- Proof-Tested to 200% capacity and certificates supplied
Specifications Click Here
Instruction Manual Click Here
Country of Origin
Made in USA
